Conductive Films

The Ohmlex product line addresses the growing market demands and needs for an indium tin  oxide (ITO) alternative that offers a lower material cost, lower processing cost, greater flexibility and enhanced long term performance.  Ohmlex utilizes a base PET film and coats a transparent conductive polymer layer that provides a resistance between 200 - 600 ohms/square on one side of the film.  The second side is typically coated with a hardcoat (gloss or anti-glare) to provide abrasion protection and chemical resistance.  These films provide outstanding visible light transmission (VLT), low b* value, very low haze and are robust to handle high heat and humidity

Design Characteristics

  • Optically clear PET base for high transparency/light transmission
  • Available hardcoat layer for abrasion protection and chemical resistance
  • Range of surface resistivity levels
  • Available in 5 mil or 7 mil PET thickness

Product Range

Ohmlex 200 – PET base has a conductive polymer layer providing a surface resistance of ~200 ohms/square and an available hardcoat (2H) on the second surface layer

Ohmlex 400 – PET base has a conductive polymer layer providing a surface resistance of ~400 ohms/square and an available hardcoat (2H) on the second surface layer

Ohmlex 600 – PET base has a conductive polymer layer providing a surface resistance of ~600 ohms/square and an a available hardcoat  (2H) on the second surface layer

Application

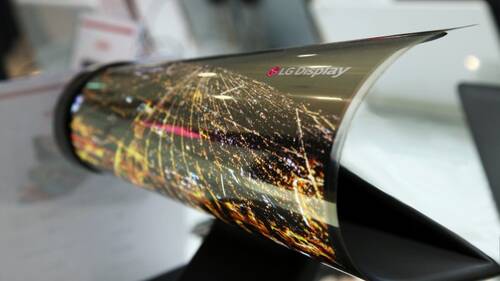

  • Displays
  • Touch screens/devices
  • OLED screen
  • Solar cells

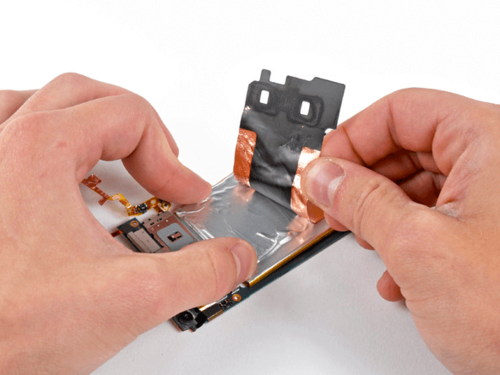

  • EMI Shielding
  • Electrochromic Glass
